Atom Reachability Tools

The atom_reachability pipeline uses Atom to determine whether code symbols referenced by a vulnerability patch are reachable. Atom is run twice against the project codebase:

• usages extracts local variable and parameter usages from the code and writes a .atom file plus a usages slice.

• reachables reads that .atom file and writes a reachables slice of the symbols that can actually be reached, based on automatically generated framework tags.

Each advisory is classified as yes, unknown, or no.

Requirements

• Atom tool installed and configured.

Configuration

Set this environment variable in your .env:

ATOM_EXECUTABLE="/home/user/.npm-global/bin/atom"

Running the pipeline

1. Open a Project that contains resources and at least one package vulnerability.

2. Click “Add pipeline” and select “atom_reachability”.

3. Select “Execute pipeline now” and click “Add pipeline”.

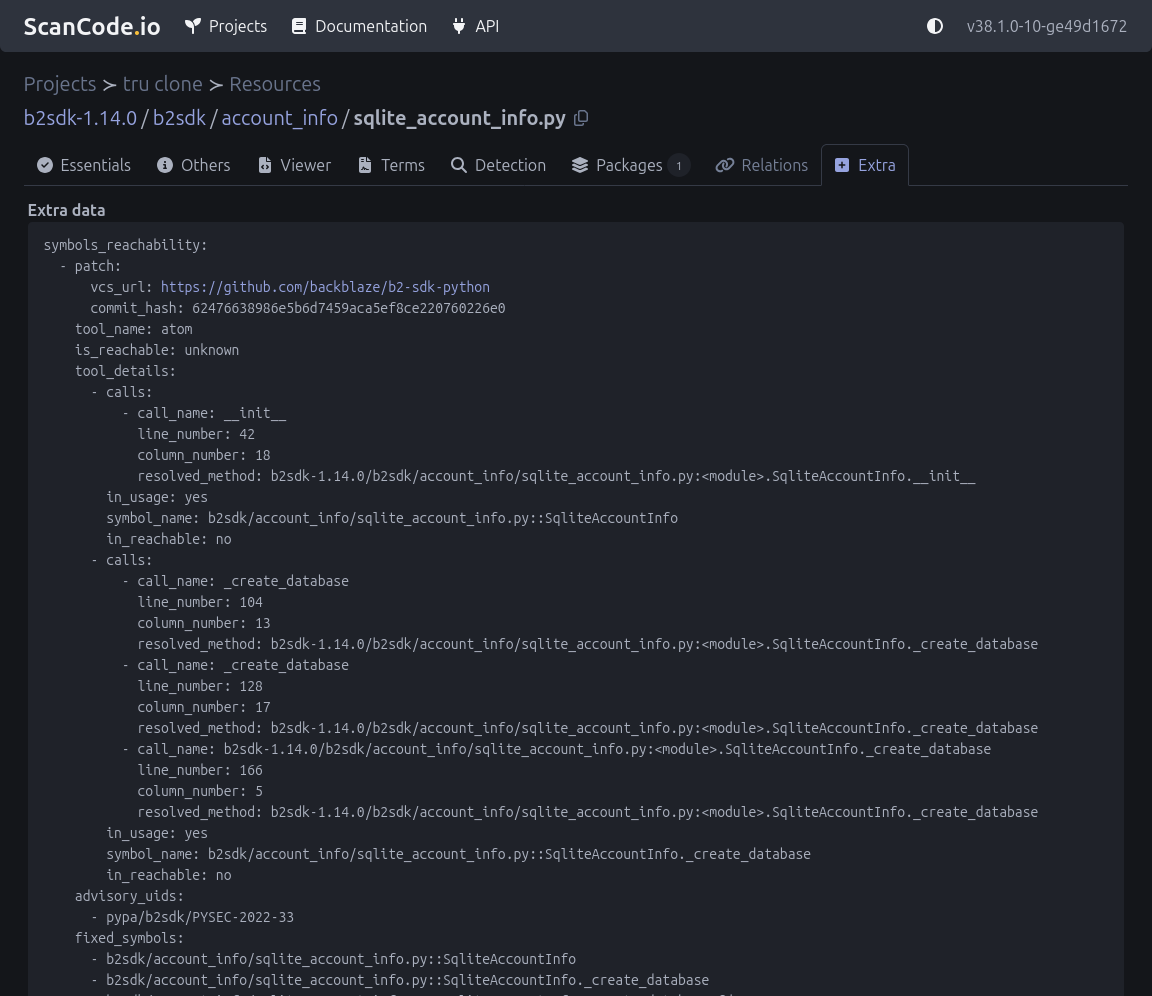

4. After completion, open the Resources view (click the count under “RESOURCES”), then click an affected file and open the Extra tab to view the symbols_reachability data.

Output

The pipeline writes four timestamped files three JSON documents and one binary atom file and embeds the same advisory data in each resource’s extra_data.symbols_reachability.

1. reachability-YYYY-MM-DD-HH-MM-SS.json is the advisory reachability report. It aggregates results per advisory, listing each advisory with its overall verdict, matched vulnerable/fixed symbols, and per-symbol witness paths. Schema:

{
  "purl": "pkg:pypi/b2sdk@1.14.0",
  "advisories": [
    {
      "advisory_uid": "pypa/b2sdk/PYSEC-2022-33",
      "is_reachable": "yes",
      "details": [
        {
          "symbol_name": "SqliteAccountInfo._create_database",
          "in_usage": true,
          "calls": [],
          "in_reachable": true
        }
      ],
      "vulnerable_symbols": [
        "b2sdk/account_info/sqlite_account_info.py::SqliteAccountInfo",
        "b2sdk/account_info/sqlite_account_info.py::SqliteAccountInfo._create_database",
      ],
      "fixed_symbols": [
        "b2sdk/account_info/sqlite_account_info.py::SqliteAccountInfo",
        "b2sdk/account_info/sqlite_account_info.py::SqliteAccountInfo._create_database",
      ]
    }
  ]
}

2. atom_reachability-YYYY-MM-DD-HH-MM-SS.python.usages.slices.json is the usages slice generated by atom.

{
  "objectSlices": [...],
  "userDefinedTypes": [...]
}

3. atom_reachability-YYYY-MM-DD-HH-MM-SS.python.reachables.slices.json is the reachables slice generated by atom.

[
  {
    "flows": [
    ...
    ],
    "purls": []
  },
  ...
]

4. atom_reachability-YYYY-MM-DD-HH-MM-SS.python.atom is atom’s binary CPG. It can be re-sliced, exported to other tools, and queried with graph algorithms using the atom CLI.
